The QSE-CI-DMX can be programmed so that any or all zones on a GRAFIK Eye QS control unit can control either 3 channels (e.g., RGB) or 1 channel (i.e., intensity of a single light). Raising or lowering a zone will change the color (for a 3-channel zone) or the intensity (for a 1-channel zone). For other types of DMX fixtures, such as 2-channel. %PDF-1.5 %âãÏÓ 110 0 obj > endobj xref 110 33 0000000016 00000 n 0000001412 00000 n 0000001514 00000 n 0000001947 00000 n 0000002576 00000 n 0000002765 00000 n 0000002802 00000 n 0000002914 00000 n 0000003028 00000 n 0000003613 00000 n 0000004246 00000 n 0000004537 00000 n 0000004843 00000 n 0000006140 00000 n 0000006600 00000 n 0000006994 00000 n 0000007400 00000 n 0000007918 00000 n.

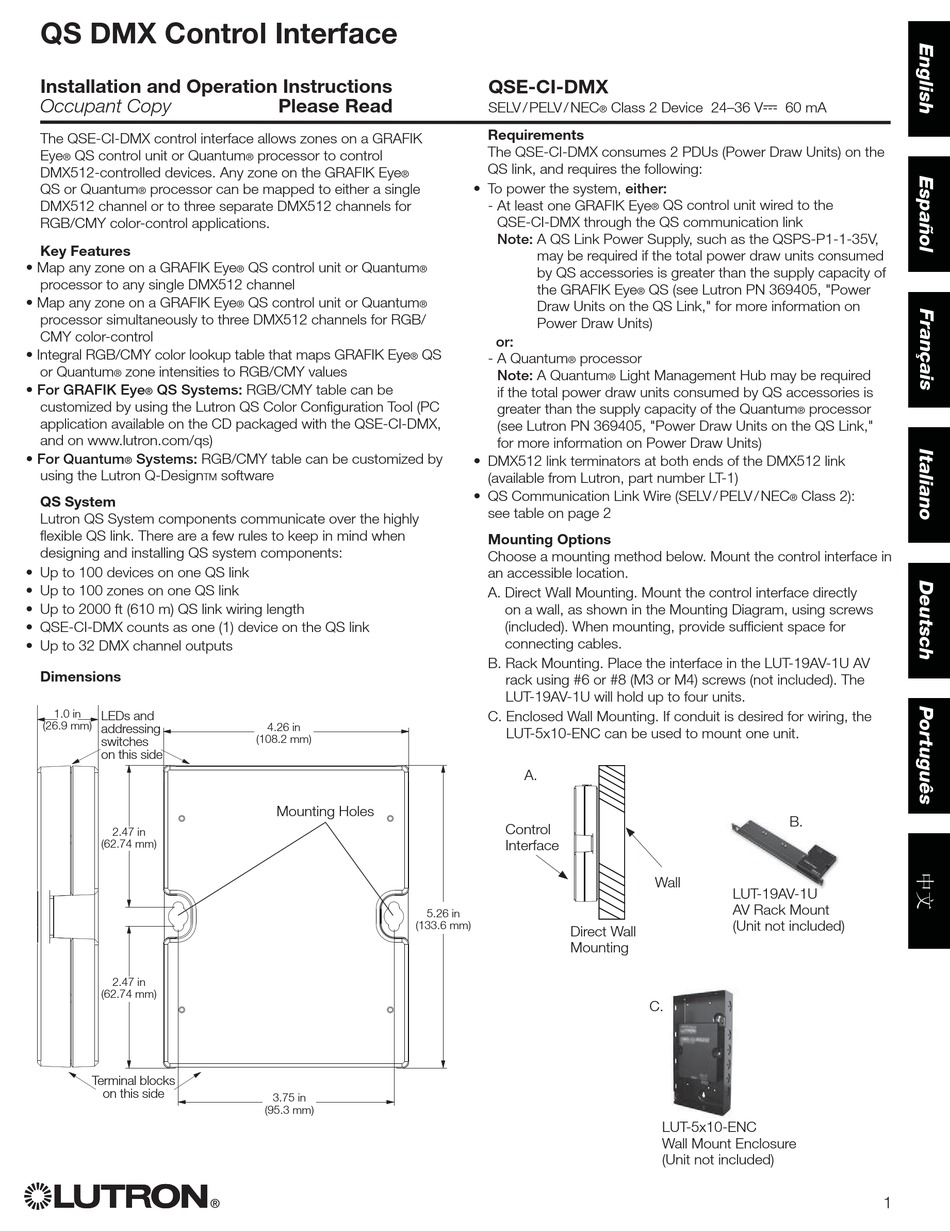

DMX-512 Link Wiring ® QSE-CI-DMX Control Interface Installation and Operation Instructions 3 Connect the DMX link terminals on the QSE-CI-DMX interface to input terminals on DMX512-controlled equipment. • Each terminal on the QSE-CI-DMX accepts two 18 AWG (1.0 mm2) wires. • Link must be 1000 feet (305 m) or less.. The QSE-CI-DMX control interface allows zones on a Grafik Eye® QS to control DMX512 controlled devices. Any zone on the Grafik Eye® QS can be mapped to either a single DMX512 channel or to three separate DMX512 channels for RGB/ CMY colour control applications.
